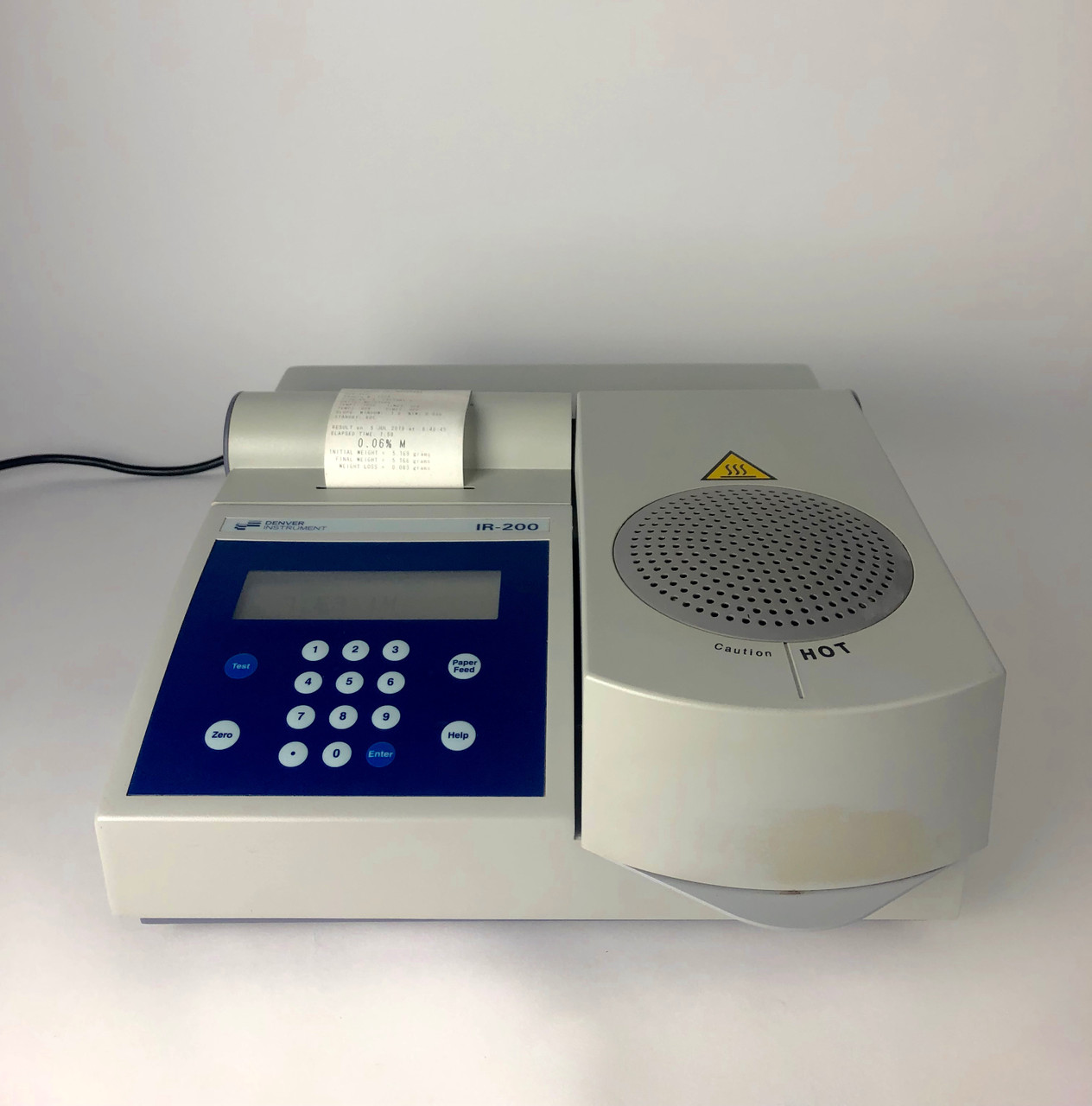

Denver Instruments IR-200 Moisture Analyzer

• Measurement method: Infrared radiation and detection of weight loss
• Heat source: Four parallel quartz infrared heaters
• Temperature setting: 30-210°C (86-410°F) in one degree increments of Celsius
• Temperature control: Platinum temperature sensor, +/- 1°C with calibration
• Temperature steps: Programmable one or two
• Weighing pan (dia.) 100 mm (4 inches)
• Balance capacity: 100 grams
• Balance readability: 1 mg
• Readability of results: 0.01%
• Working range: 0.10 - 99.90 %
• Units of results: Percent moisture, solids, volatiles, moisture dry, ppm and mg/l
• End of analysis modes: Time-out (max. 198 mins.), automatic slope Display Backlit liquid crystal display, 30 characters by 8 lines
• Controls: Test, Zero, Paper Feed, Help, Enter and numeric keypad
• Program storage: 99 programs with alphanumeric naming
• Data storage: 255 last results with statistical evaluation
• Integral printer: Thermal, 40 character graphical
