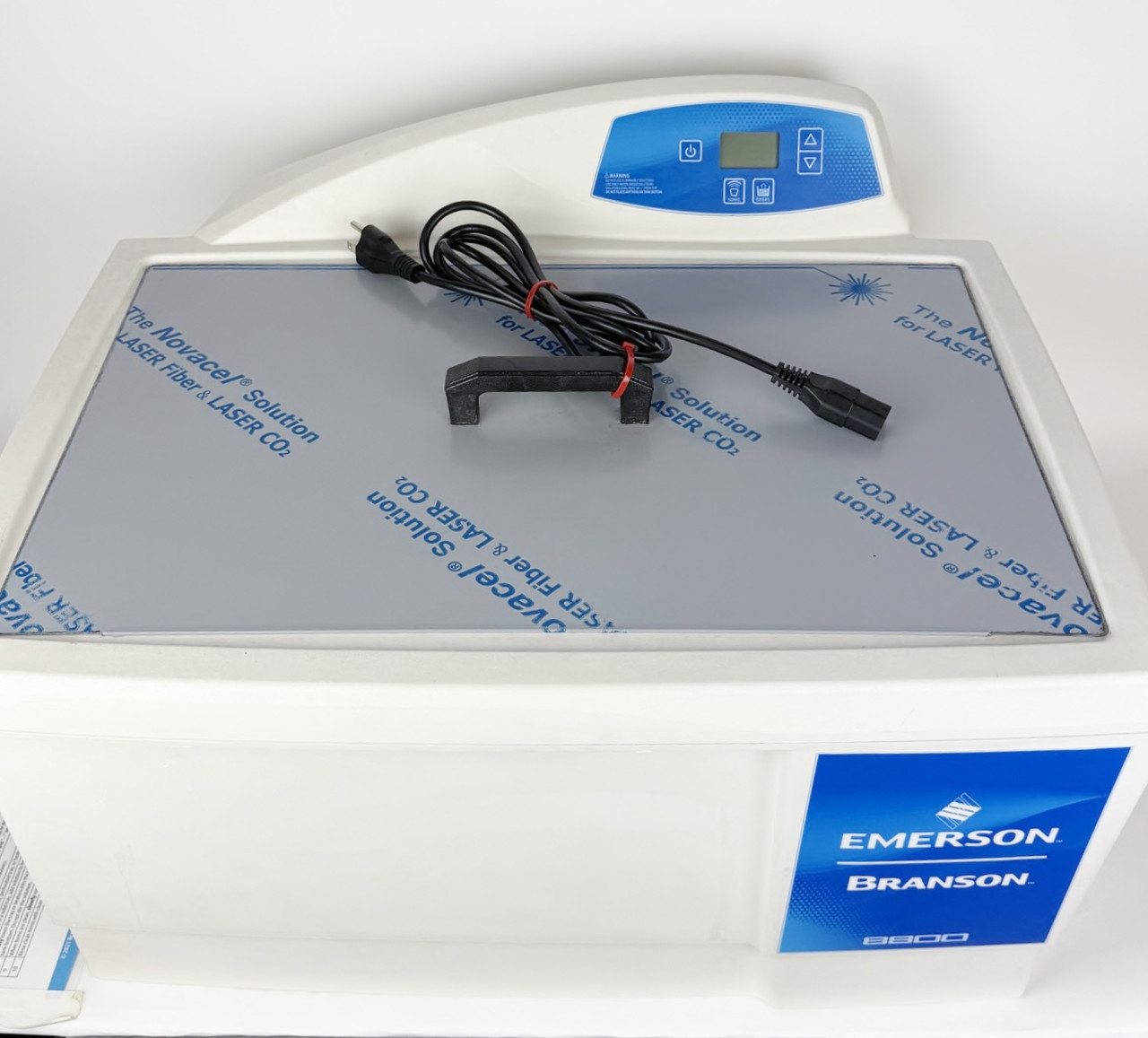

Emerson Branson Ultrasonics Bath Model CPX8800

(Date of Manufacture: October 2022)

Technical Specifications:

• Brand/Manufacturer: Branson Ultrasonics Corporation (Emerson)

• Model: CPX8800

• Equipment Type: Ultrasonic Bath

• Engineering Data Package (EDP): CPX-952-819R

• Serial Number (S/N): BGT102285210D

• Date of Manufacture: October 2022

• Country of Origin: Made in Mexico

Electrical & Operating Ratings:

• Input Voltage: 120 VAC

• Frequency: 50–60 Hz, Single Phase (1Φ)

• Power Consumption: 320 W

• Current Rating: 2.7 A

• Ultrasonic Output: 280 W at 40 kHz (+/- 6%)

• Internal Fuses Required: F1-5A, F2-3.15A

Physical & Capacity Specs:

• Tank Capacity: 5.5 Gallons (20.8 Liters)

• Tank Dimensions (L x W x D): 19.5" x 11.5" x 6" (495 x 290 x 150 mm)

• Overall Dimensions (L x W x D): 23.5" x 18.3" x 15.4" (596 x 466 x 391 mm)

• Control Configuration: Digital timer (0–99 minutes) and continuous operation tracking.
