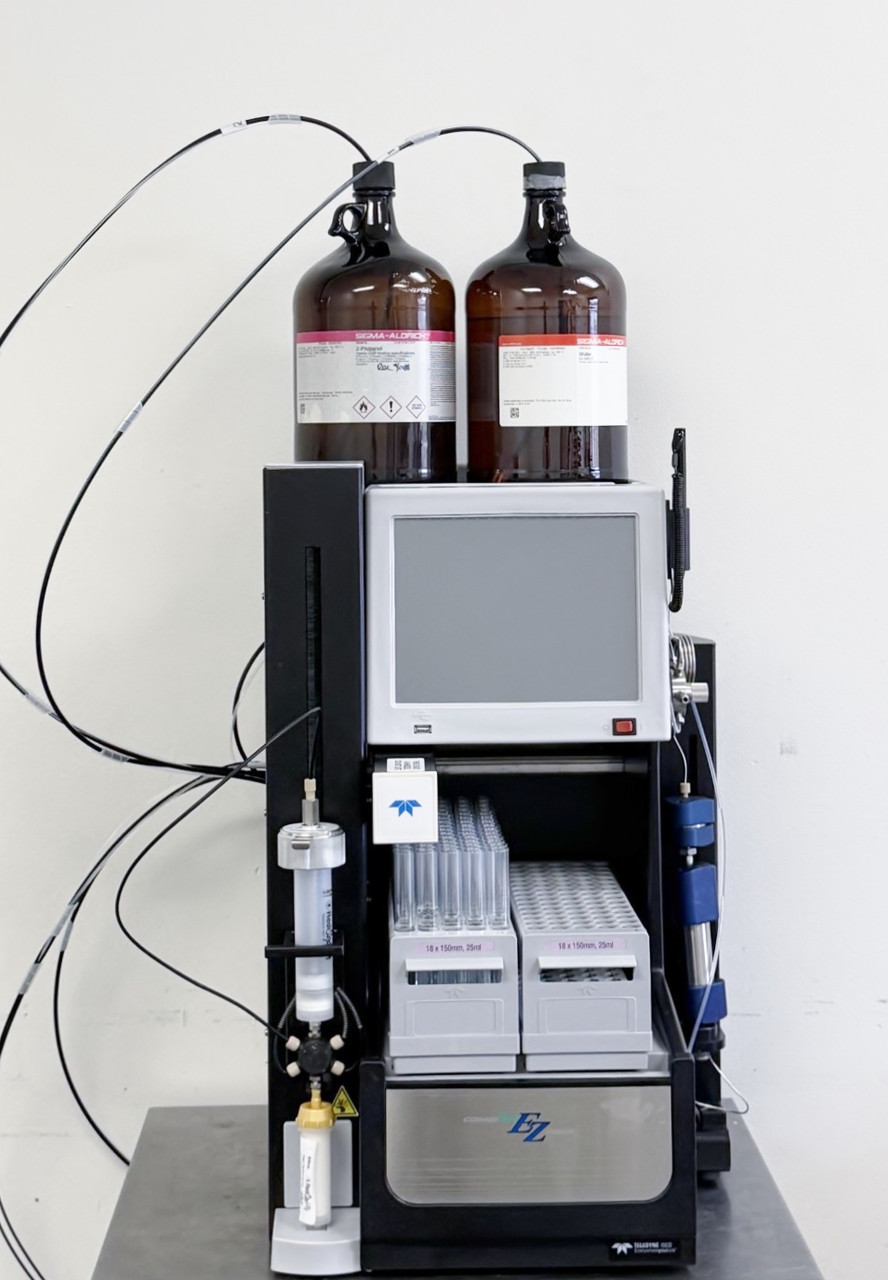

Teledyne ISCO CombiFlash NextGen 300+ EZ Prep UV Dual-Function System
Product Description
Teledyne ISCO CombiFlash NextGen 300+ EZ Prep UV Dual-Function System
Technical Performance Specifications:
Is a dual-function system capable of automated organic compound purification utilizing both Flash Chromatography and Preparative HPLC modes.
|
Feature |
Flash Chromatography Mode |
Preparative HPLC Mode |
|
Flow Rate Range |
1–300 mL/min |
Up to 200 mL/min |
|
Maximum Pressure |
Up to 300 psi (20 bar) |
Up to 3,500 psi (240 bar) |
|
Column Size Compatibility |
4 g to 330 g (up to 3 kg with extensions) |
Up to 50 mm diameter columns |
|
Sample Loading |
Liquid or manual/automated solid load |
Injection loop / valve automated loading |
System Features & Detection:
-
UV Detection: Variable wavelength UV Photo Diode Array (PDA) Technology from 200–400 nm. Includes real-time UV spectral display and baseline subtraction.
-
Solvent Delivery System: Dual syringe pump supporting binary gradients across 4 solvent inlets with a standard 3rd solvent modifier. Low-pressure gradient formation.
-
User Interface: 12-inch or 15-inch capacitive touch screen powered by PeakTrak software.
-
Automation Automation & Safety: RFID column and fraction collection rack recognition. Features internal vapor sensors, active solvent/waste level monitoring, and a dual-position internal fraction collector.
-
Expansion Options: Compatible with integrated Evaporative Light Scattering Detectors (ELSD) or PurIon Mass Spectrometers (MS).
SHIPPING WILL BE FREIGHT
