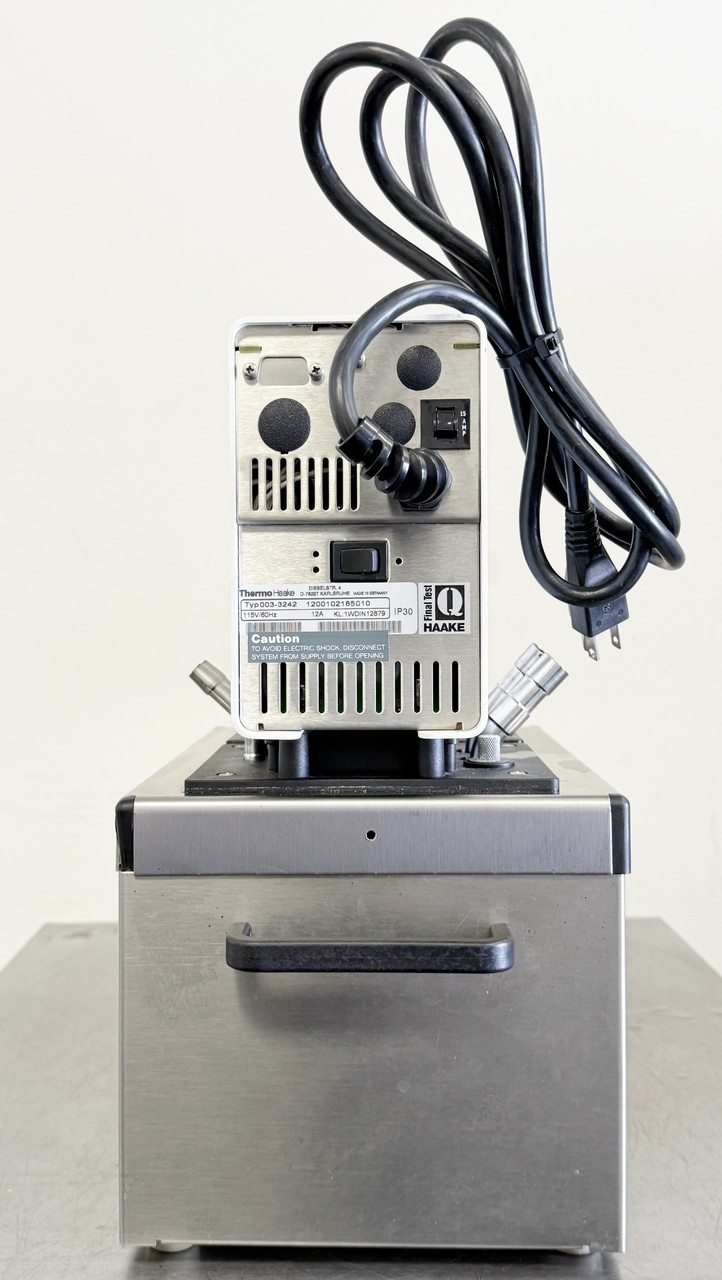

Thermo Haake B3 with Thermo Haake DC 10 Heater Pump

 The main task for these very small, reliable heating circulators is temperature control of instruments, such as viscometers, photometers, refractometers or small reaction vessels at different temperatures. A bath opening for direct temperature control of immersed samples is also available. All temperature controllers are of robust design using high grade stainless steel and 2 speed power-pump. All pumps operate with a pump pressure of 30 mbar and a pump flow of 12.5 L/min. The model C10 has electronic On/Off control to be used with water or water and anti-freeze.

Haake DC 10 Technical Specifications:

Limit: 0.01-0.04 °C temp. stability

25-100 °C temperature

Heater Capacity: 1.5 kw

Haake B3 Bath Technical Specifications:

Material: Stainless steel

Bath Opening: 5" x 4"

Bath Depth: 6"

Volume: 3L

Dimensions (WxDxH): 8" x 12" x 15"
