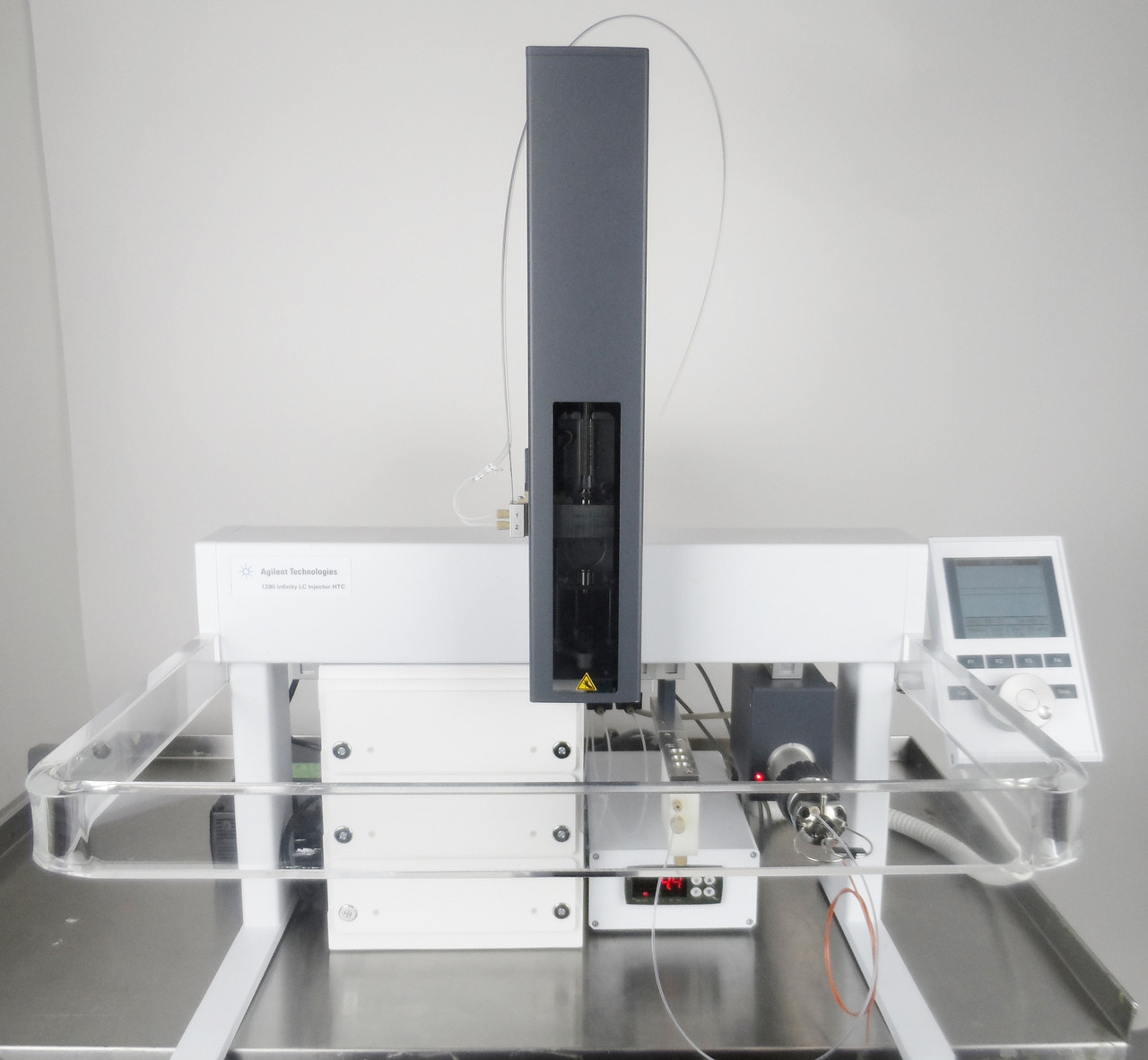

Agilent Technologies G4278A 1290 Infinity LC Injector HTC

Specifications:

• Electrical data:
• Voltage: 36 VDC
• Current: 3.2 A
• Fuse: T6.3 A/250 V
• Input line frequency: 50 /60 Hz
• Input power: 4 A
• Output voltage: 36 VDC
• Output current: 4.16 A
• Syringe Size: 100 µL
• Operating Temperature Range: 4 to 40 °C (39 to 104 °F)
• Maximum Relative Humidity: 75%, non-condensing
• Minimum Sample Volume: 1 µL from a 3 µL sample in 1 mL tapered micro vial in liquid injection mode
• Injection volumes: Up to 100 µL with standard setup, up to 5 mL with additional hardware
• Injection precision: <0.5 % with 100 µL syringe and 2 µL loop, overfill 7 µL
• Dimensions: 25.5" H x 15.2" D x 21.5" W (64.8 x 38.5 x 54.5 cm)
