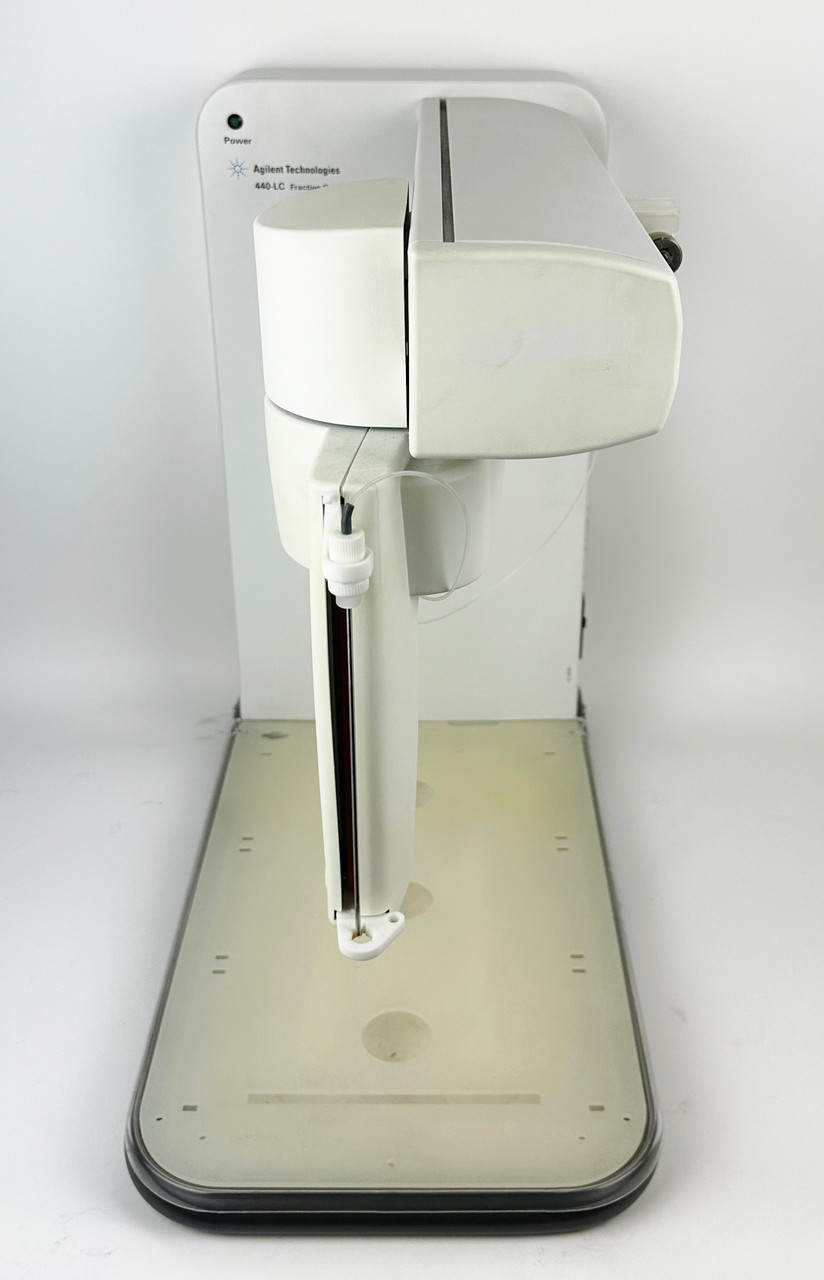

Agilent Technologies 440-LC Fraction Collector

is an open-bed, random-access instrument designed for automated sample collection in semi-preparative and preparative high-performance liquid chromatography (HPLC)

Specifications:

• Weight: 18 kg (34 lb)
• Dimensions (H x W x D): 510 mm x 490 mm x 285 mm (21 in x 20 in x 12 in)
• Line Voltage: 100 – 240 VAC (tested 90 – 264 VAC)
• Line Frequency: 50 – 60 Hz ±1 Hz
• Power Consumption: 75 W; 100 VA
• Ambient Operating Temperature: 10 – 35 °C (50 – 95 °F)
• Operating Humidity: 8 – 80% RH (non-condensing)
• Operating Altitude: 0 – 3050 m (0 – 10000 ft)
• Number of Fraction Racks: 1 – 3 racks
• Tubes/Vials per Rack: 21 – 200 tubes (up to a large capacity of 270 × 13 mm OD tubes depending on configuration)
• Maximal Tube Height: 150 mm
• Movement Mechanism: Fast tube-to-tube movement via 'X, Z, theta' axis single probe functionality to minimize sample loss
